Charnwood Bay 5BX Wood Burning Stove
Charnwood Bay 5BX Wood Burning Stove
The Charnwood Bay 5BX Wood Burning Stove combines modern styling with exceptional performance, offering a flexible heating solution that suits both traditional and contemporary interiors. Built around the same high-performance firebox and frame as the Bay VL, the Bay 5BX features a distinctive outer casing that transforms it into a sleek, freestanding stove - perfect for creating a striking focal point in any room.

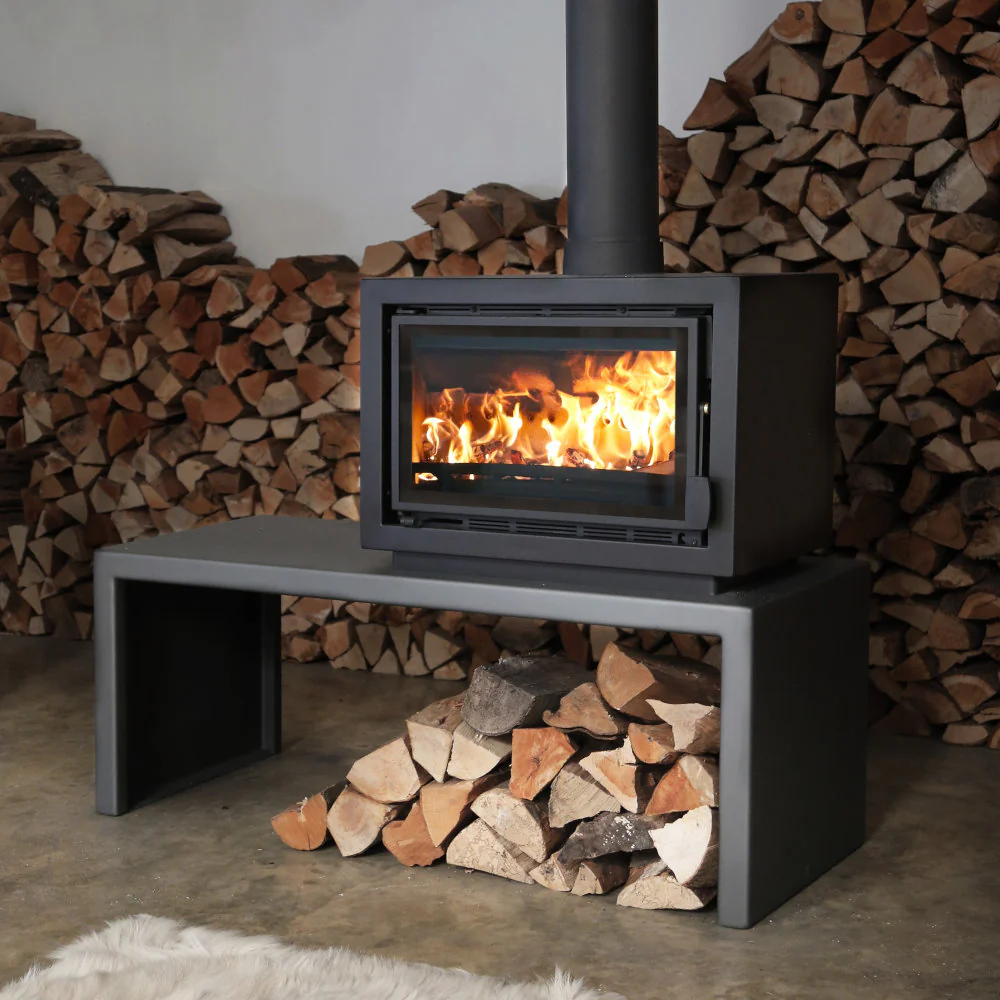

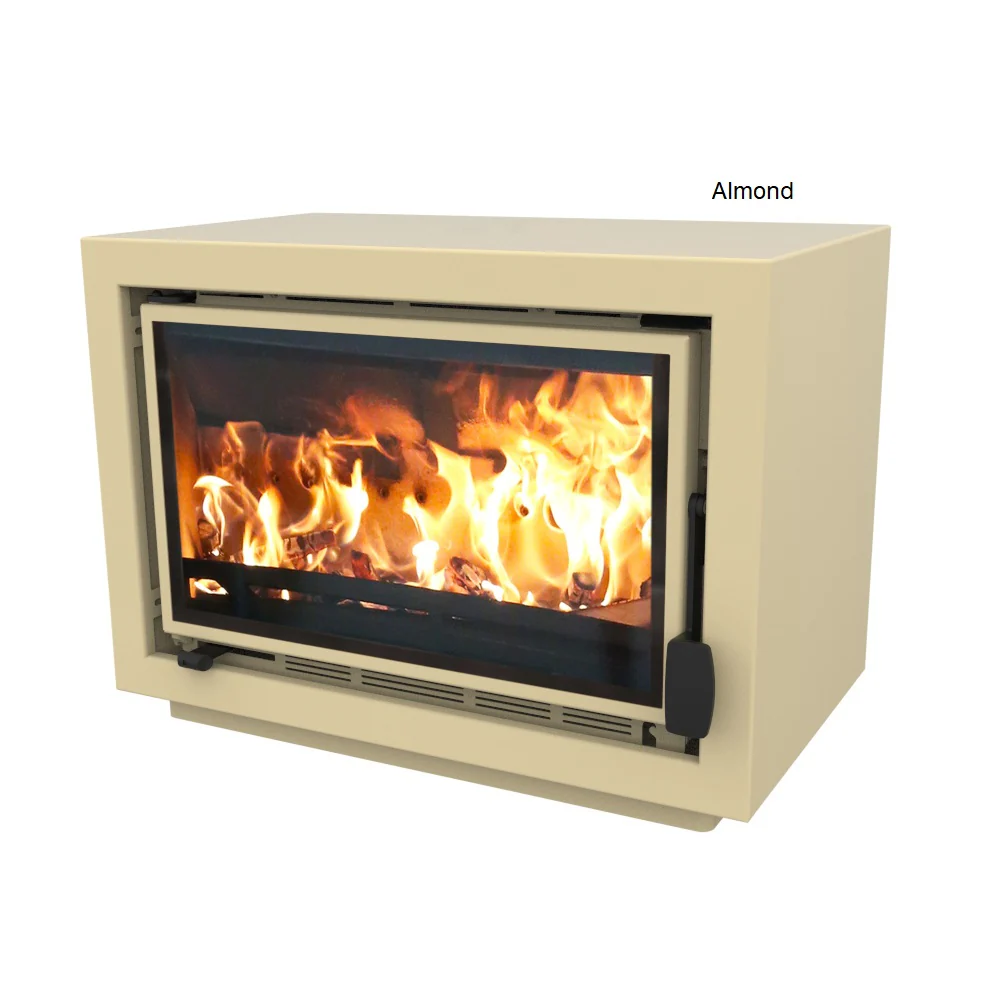

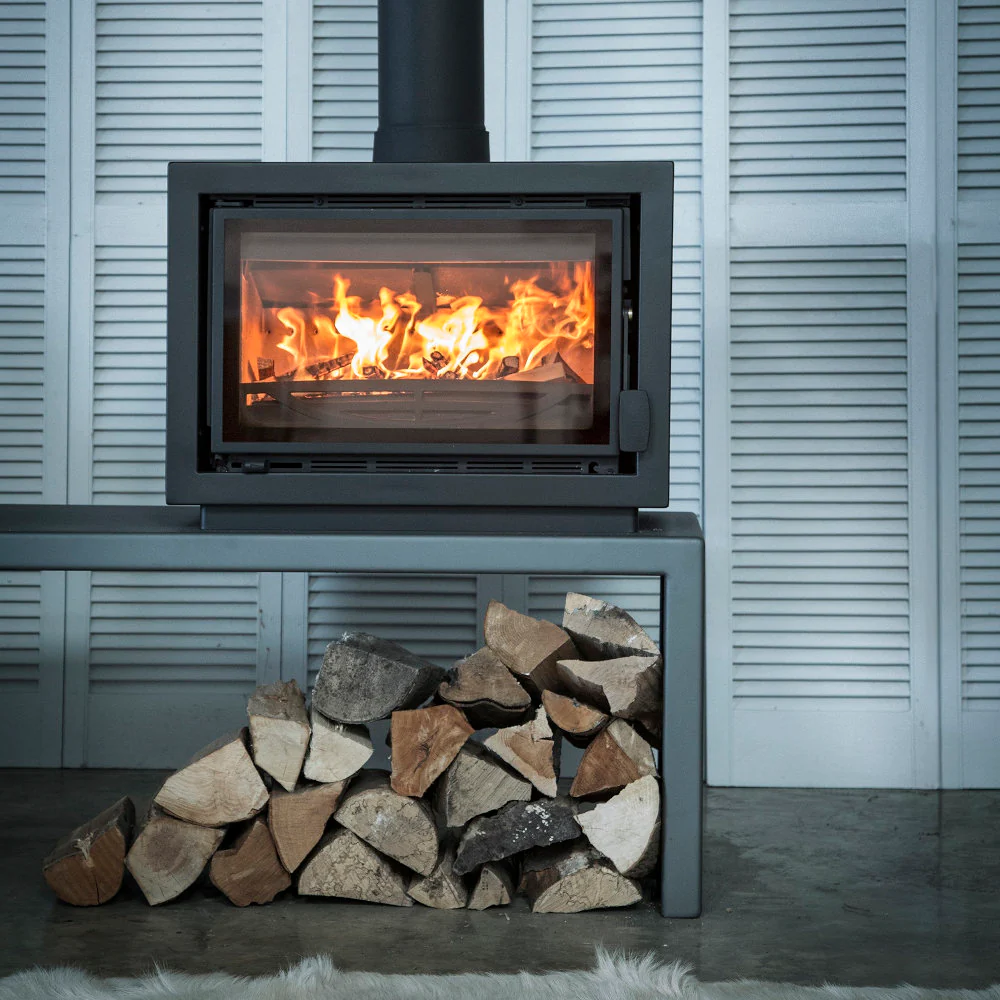

Designed for versatility, the Bay 5BX can be installed directly onto a hearth or elevated with one of three stylish base options: a bench stand, centre stand, or store stand. These bases allow you to tailor the stove’s appearance and height to suit your space, while both the stove and base are available in a choice of eight elegant Charnwood colours.
Beneath its contemporary design, the Bay 5BX incorporates advanced Cleanburn Airwash Technology for efficient combustion and a crystal-clear view of the flames. Meeting the latest SIA EcoDesign Ready standards, it delivers excellent energy efficiency and low emissions, ensuring an environmentally responsible burn. The stove is also DEFRA exempt, meaning it can be used for burning wood cleanly and legally in Smoke Control Areas.
Blending sophisticated design, outstanding efficiency, and installation flexibility, the Charnwood Bay 5BX offers a perfect balance of style and substance - bringing warmth, comfort, and modern craftsmanship to any home.
Features of the Bay 5BX
- SIA Eco Design ready
- Cleanburn airwash technology for clear window and efficient burn
- Drop down throat plate enabling the chimney to be swept through the stove
- DEFRA exempt for burning wood in smoke control areas
- Materials - Plate steel, cast iron, ceramic glass
- Output - 5kW to room (range 2-7kW)
- Net Efficiency - 81%
- Flue Outlet - Top 150mm (6in) diameter
- Max log length - 463mm (18")
- Min Distance to Combustibles - Side: 150mm Rear: 270mm (With insulated flue Side: 100mm Rear: 130mm
Do you know if you are in a smoke controlled area
It is important that the correct research is carried out on the area you live in before you make a stove purchase. You can check what you can and cannot burn on the gov.uk and whether or not you require a smoke control kit. Find out now.
What does DEFRA Approved mean
A DEFRA Approved stove is a stove that you are able to install within a smoke controlled area of the United Kingdom.
Safety
Please be aware that all stoves, supplied online and in store, when lit are hot to touch and will burn. Please take care with your fire and use always ensure a fire guard is used with children. When opening any stove door and adding logs it is also advised that a set of fire proof gloves are recommended.
Shutting down your fire
To shut down your stove is an controlled and safe manner, Bell advise that you close the air feed, which in turn will starve the fire of oxygen resulting in the extinguishing of the fire.
Cleaning your stove
Multi Fuel - You be able to leave your stove for a few fires to build a bed of ash onto the fire grate which you would disturb but not empty prior the lighting process. To allow a good flow of air to pass underneath the fuel bed, wood will generally burn better and slower on a bed of ash. Coal - Generally you will need to clean your fire grate prior to starting the lighting process of your stove. Having your chimney swept - Have your chimney swept on a regular basis. Please refer to HETAS for a certified chimney sweep.
Please note: Flue pipe is not included with the appliance and must be purchased separately.
Charnwood Bay 5BX Wood Burning Stove
The Charnwood Bay 5BX Wood Burning Stove combines modern styling with exceptional performance, offering a flexible heating solution that suits both traditional and contemporary interiors. Built around the same high-performance firebox and frame as the Bay VL, the Bay 5BX features a distinctive outer casing that transforms it into a sleek, freestanding stove - perfect for creating a striking focal point in any room.
Designed for versatility, the Bay 5BX can be installed directly onto a hearth or elevated with one of three stylish base options: a bench stand, centre stand, or store stand. These bases allow you to tailor the stove’s appearance and height to suit your space, while both the stove and base are available in a choice of eight elegant Charnwood colours.
Beneath its contemporary design, the Bay 5BX incorporates advanced Cleanburn Airwash Technology for efficient combustion and a crystal-clear view of the flames. Meeting the latest SIA EcoDesign Ready standards, it delivers excellent energy efficiency and low emissions, ensuring an environmentally responsible burn. The stove is also DEFRA exempt, meaning it can be used for burning wood cleanly and legally in Smoke Control Areas.
Blending sophisticated design, outstanding efficiency, and installation flexibility, the Charnwood Bay 5BX offers a perfect balance of style and substance - bringing warmth, comfort, and modern craftsmanship to any home.
Features of the Bay 5BX
- SIA Eco Design ready
- Cleanburn airwash technology for clear window and efficient burn
- Drop down throat plate enabling the chimney to be swept through the stove
- DEFRA exempt for burning wood in smoke control areas
- Materials - Plate steel, cast iron, ceramic glass
- Output - 5kW to room (range 2-7kW)
- Net Efficiency - 81%
- Flue Outlet - Top 150mm (6in) diameter
- Max log length - 463mm (18")
- Min Distance to Combustibles - Side: 150mm Rear: 270mm (With insulated flue Side: 100mm Rear: 130mm
Do you know if you are in a smoke controlled area
It is important that the correct research is carried out on the area you live in before you make a stove purchase. You can check what you can and cannot burn on the gov.uk and whether or not you require a smoke control kit. Find out now.
What does DEFRA Approved mean
A DEFRA Approved stove is a stove that you are able to install within a smoke controlled area of the United Kingdom.
Safety
Please be aware that all stoves, supplied online and in store, when lit are hot to touch and will burn. Please take care with your fire and use always ensure a fire guard is used with children. When opening any stove door and adding logs it is also advised that a set of fire proof gloves are recommended.
Shutting down your fire
To shut down your stove is an controlled and safe manner, Bell advise that you close the air feed, which in turn will starve the fire of oxygen resulting in the extinguishing of the fire.
Cleaning your stove
Multi Fuel - You be able to leave your stove for a few fires to build a bed of ash onto the fire grate which you would disturb but not empty prior the lighting process. To allow a good flow of air to pass underneath the fuel bed, wood will generally burn better and slower on a bed of ash. Coal - Generally you will need to clean your fire grate prior to starting the lighting process of your stove. Having your chimney swept - Have your chimney swept on a regular basis. Please refer to HETAS for a certified chimney sweep.
Please note: Flue pipe is not included with the appliance and must be purchased separately.
Original: $2,562.00
-70%$2,562.00
$768.60Description
Charnwood Bay 5BX Wood Burning Stove
The Charnwood Bay 5BX Wood Burning Stove combines modern styling with exceptional performance, offering a flexible heating solution that suits both traditional and contemporary interiors. Built around the same high-performance firebox and frame as the Bay VL, the Bay 5BX features a distinctive outer casing that transforms it into a sleek, freestanding stove - perfect for creating a striking focal point in any room.
Designed for versatility, the Bay 5BX can be installed directly onto a hearth or elevated with one of three stylish base options: a bench stand, centre stand, or store stand. These bases allow you to tailor the stove’s appearance and height to suit your space, while both the stove and base are available in a choice of eight elegant Charnwood colours.
Beneath its contemporary design, the Bay 5BX incorporates advanced Cleanburn Airwash Technology for efficient combustion and a crystal-clear view of the flames. Meeting the latest SIA EcoDesign Ready standards, it delivers excellent energy efficiency and low emissions, ensuring an environmentally responsible burn. The stove is also DEFRA exempt, meaning it can be used for burning wood cleanly and legally in Smoke Control Areas.
Blending sophisticated design, outstanding efficiency, and installation flexibility, the Charnwood Bay 5BX offers a perfect balance of style and substance - bringing warmth, comfort, and modern craftsmanship to any home.
Features of the Bay 5BX
- SIA Eco Design ready
- Cleanburn airwash technology for clear window and efficient burn
- Drop down throat plate enabling the chimney to be swept through the stove
- DEFRA exempt for burning wood in smoke control areas
- Materials - Plate steel, cast iron, ceramic glass
- Output - 5kW to room (range 2-7kW)
- Net Efficiency - 81%
- Flue Outlet - Top 150mm (6in) diameter
- Max log length - 463mm (18")
- Min Distance to Combustibles - Side: 150mm Rear: 270mm (With insulated flue Side: 100mm Rear: 130mm
Do you know if you are in a smoke controlled area
It is important that the correct research is carried out on the area you live in before you make a stove purchase. You can check what you can and cannot burn on the gov.uk and whether or not you require a smoke control kit. Find out now.
What does DEFRA Approved mean
A DEFRA Approved stove is a stove that you are able to install within a smoke controlled area of the United Kingdom.
Safety
Please be aware that all stoves, supplied online and in store, when lit are hot to touch and will burn. Please take care with your fire and use always ensure a fire guard is used with children. When opening any stove door and adding logs it is also advised that a set of fire proof gloves are recommended.
Shutting down your fire
To shut down your stove is an controlled and safe manner, Bell advise that you close the air feed, which in turn will starve the fire of oxygen resulting in the extinguishing of the fire.
Cleaning your stove
Multi Fuel - You be able to leave your stove for a few fires to build a bed of ash onto the fire grate which you would disturb but not empty prior the lighting process. To allow a good flow of air to pass underneath the fuel bed, wood will generally burn better and slower on a bed of ash. Coal - Generally you will need to clean your fire grate prior to starting the lighting process of your stove. Having your chimney swept - Have your chimney swept on a regular basis. Please refer to HETAS for a certified chimney sweep.
Please note: Flue pipe is not included with the appliance and must be purchased separately.
